Software

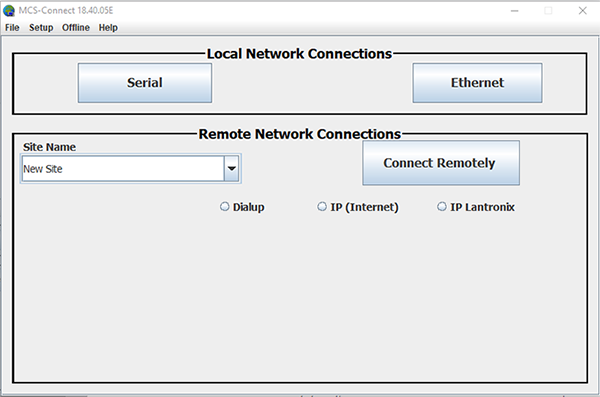

MCS-CONNECT

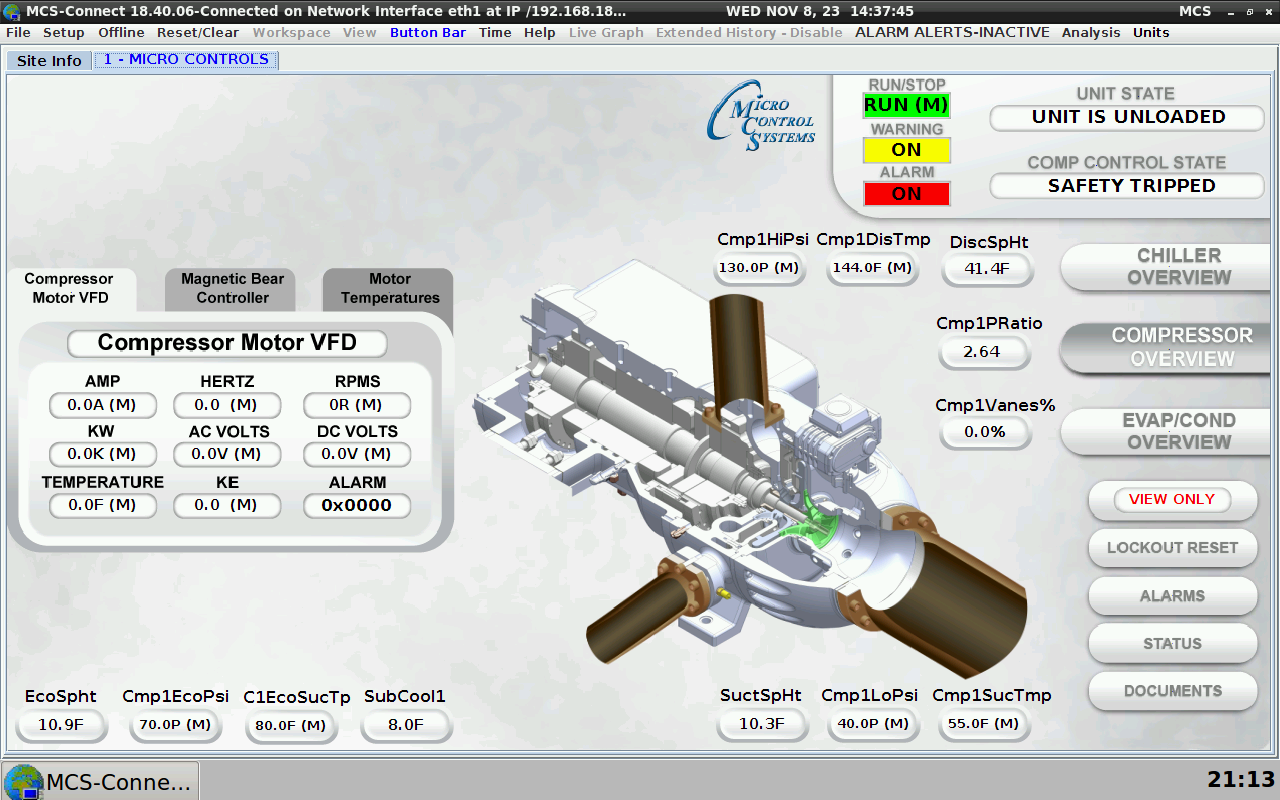

MCS-CONNECT permits the user to monitor the status of the micro controller in real time and, with proper authorization, changes can be made to the system. In as fast as 10 seconds configuration files can be transmitted to or received from a MCS micro controller. Another powerful feature of MCS-CONNECT is its ability to graph event history. Since MCS controllers automatically perform history logging, the user can select which inputs or outputs to graph and view the results either in real time or over a user selectable period of time.

MCS-CONNECT-WINDOWS

MCS-CONNECT VIEW ONLY

The 'View Only' software download will only allow for displaying information from MCS-Controllers.

CONNECT VIEW ONLY 18.40.06

CONNECT VIEW ONLY BETA 18.40.09

MCS-CONNECT AUTH CODE

The 'Auth Code' software download will allow displaying information from MCS-Controllers. With proper authorization allows modifying data that can be changed.

CONNECT AUTH CODE 18.40.06

CONNECT AUTH CODE BETA 18.40.09

Please Note: The above version of MCS-Connect graphic's feature will only work correctly with MCS-Graphics version 3.0

MCS-Connect Spec Sheet Microsoft Windows® program that communicates with MCS-8, MCS-MAGNUM, and MCS-MicroMag micro controllers. Communications can be either local or remote. For additional information please refer to the MCS-CONNECT ManualPDF

Please Note:

This file contains the latest official release of MCS-Connect. This is a full install and does not require a previous version to have been installed. To install the software, first download (Save) the above file to your computer and then run it by clicking on the downloaded file and following the instructions given.

MCS-CONNECT-LINUX

MCS-CONNECT-LINUX: A Linux program that communicates with MCS-8, MCS-MAGNUM, and MCS-MicroMag micro controllers.

MCS-CONNECT LINUX

CONNECT LINUX 18.40.06

MCS-CONNECT LINUX BETA

CONNECT LINUX BETA 18.40.09

Please Note:

This file contains the latest official release of MCS-CONNECT-LINUX. This is a full install and does not require a previous version to have been installed. To install the software, first download (Save) the above file to your computer or flash drive. Then move the installer to the touchscreen via network or flash drive. Then run it by clicking on the downloaded file and following the instructions given.

APP113-UPGRADING MCS-CONNECT ON TOUCHSCREEN

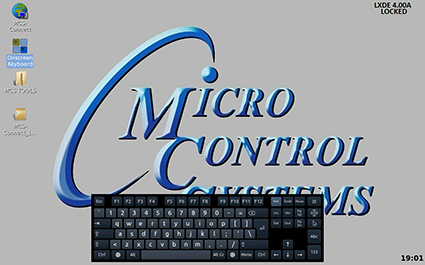

MCS-TOUCH Software

MCS-Touch Software must be downloaded, extracted, and all files in the folder saved to a formatted Micro SD card. Once saved, the Micro SD can then be inserted into the Micro SD slot located on the board mounted to the back of the touch screen before powering on the MCS-Touch.

Software Packages

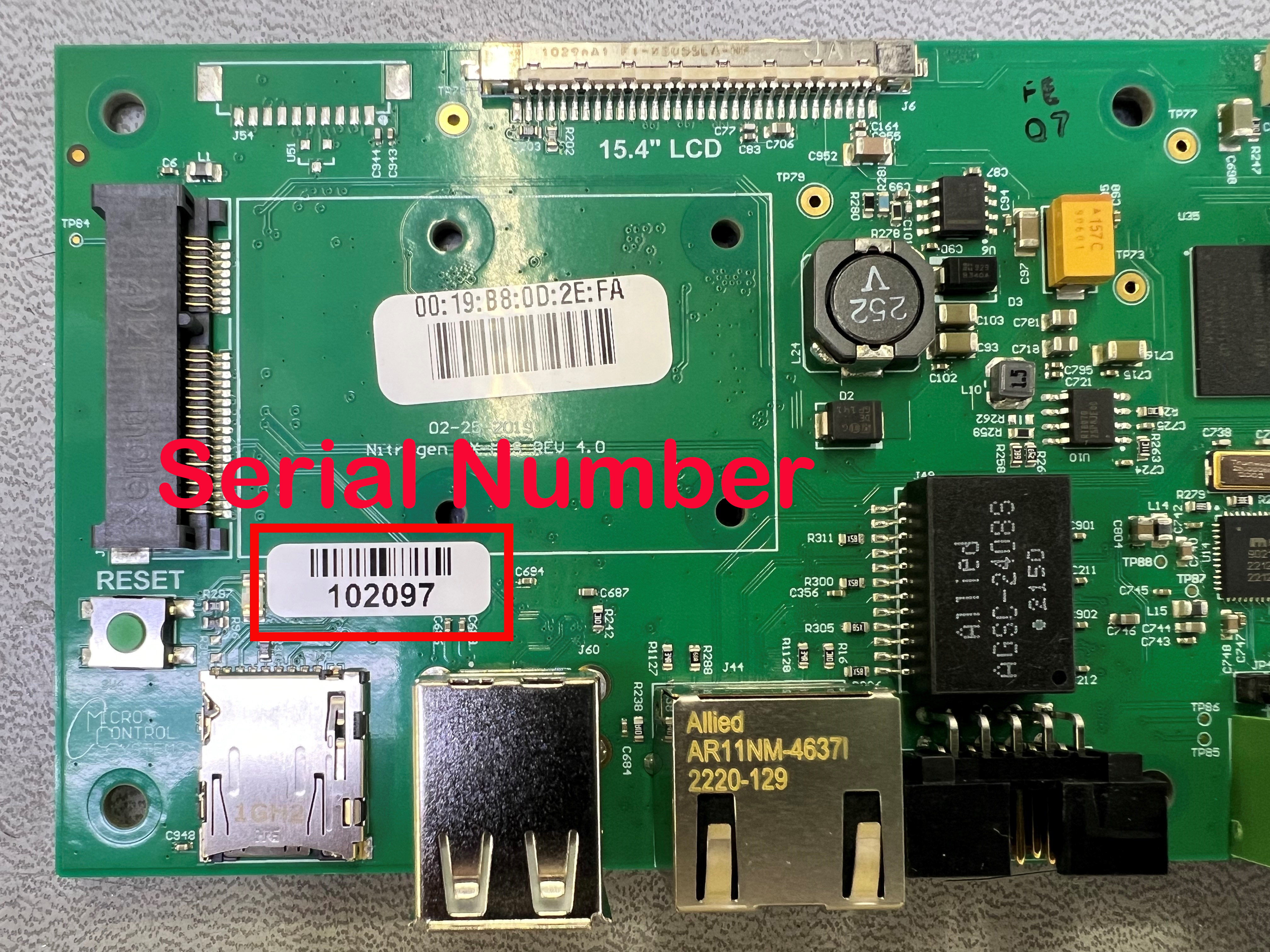

Please Note: Locate the Serial Number on your board and follow the installation procedure for proper deployment.

Serial Number's 100000 & Above

Version LXDE 4.00A DUAL

Linux Files

MCS-TOUCH DUAL Operating System Files

Serial Number's 107 & Above

Version LXDE 3.00J DUAL

Linux Files

MCS-TOUCH DUAL Operating System Files

Serial Number's 106 &
Below

Version LXDE 3.00J SOLO

Linux Files

MCS-TOUCH SOLO Operating System Files

Installation Procedure

MCS-GRAPHICS BUILDER

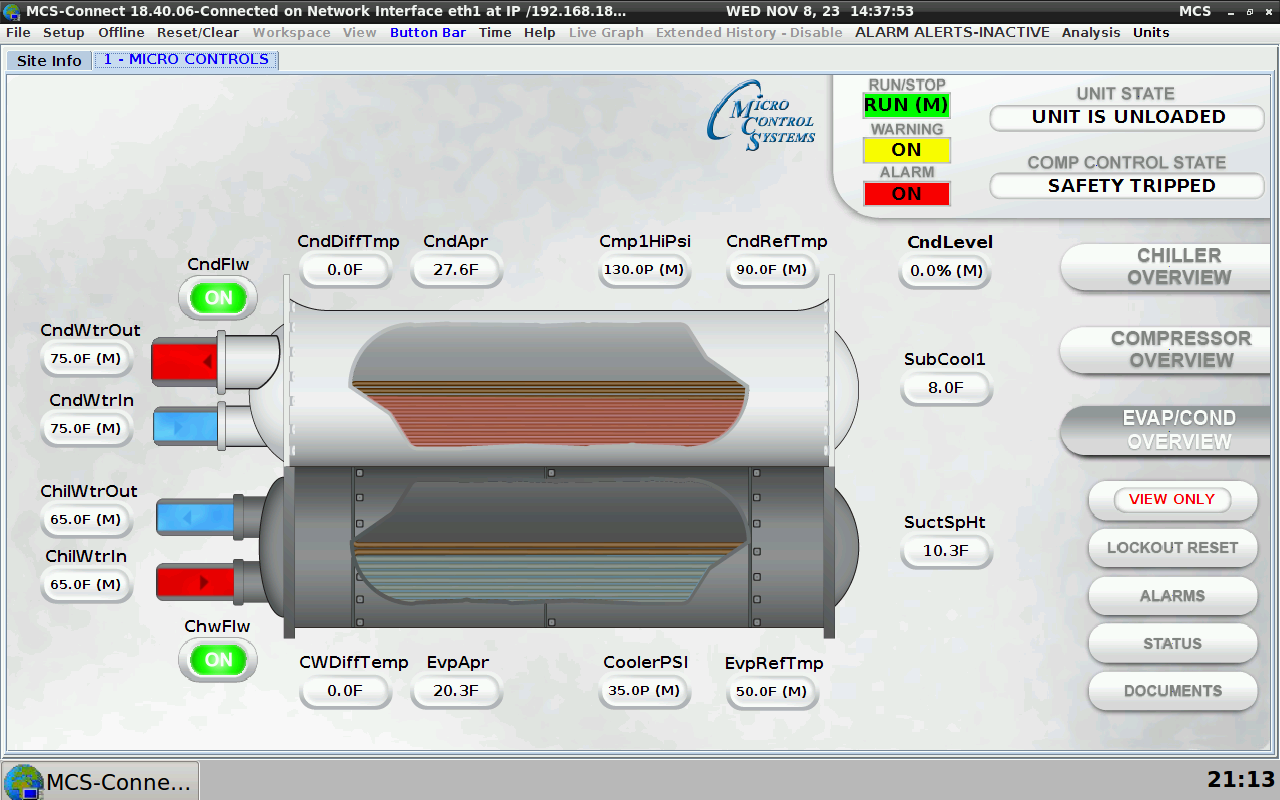

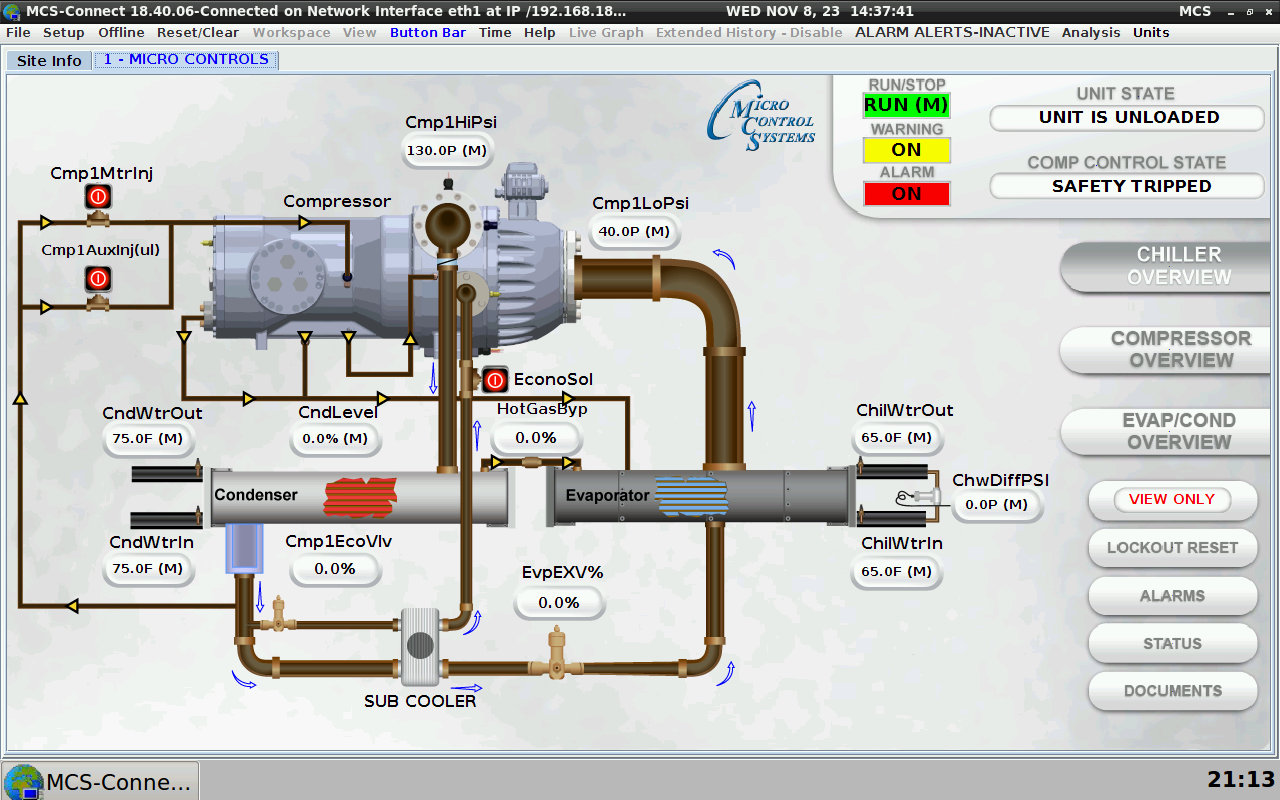

MCS-Graphics is a new feature recently added to MCS-Connect. The Graphics feature allows the user to have a graphical interface of MCS-Connect. We have setup a sample graphics screen and config.

MCS Graphics Builder Download GRAPHICS BUILDER 3.4.0 189,239 KB

Supporting App Notes Using WinSCP with the MCS-Graphics-Builder

The following documentation MCS-Touchscreen and Graphics Manual will walk you through step by step on how to setup the graphics and config file. The following files are needed to setup MCS Graphics: MCS-Graphics-Builder 3.4.2 Manual.

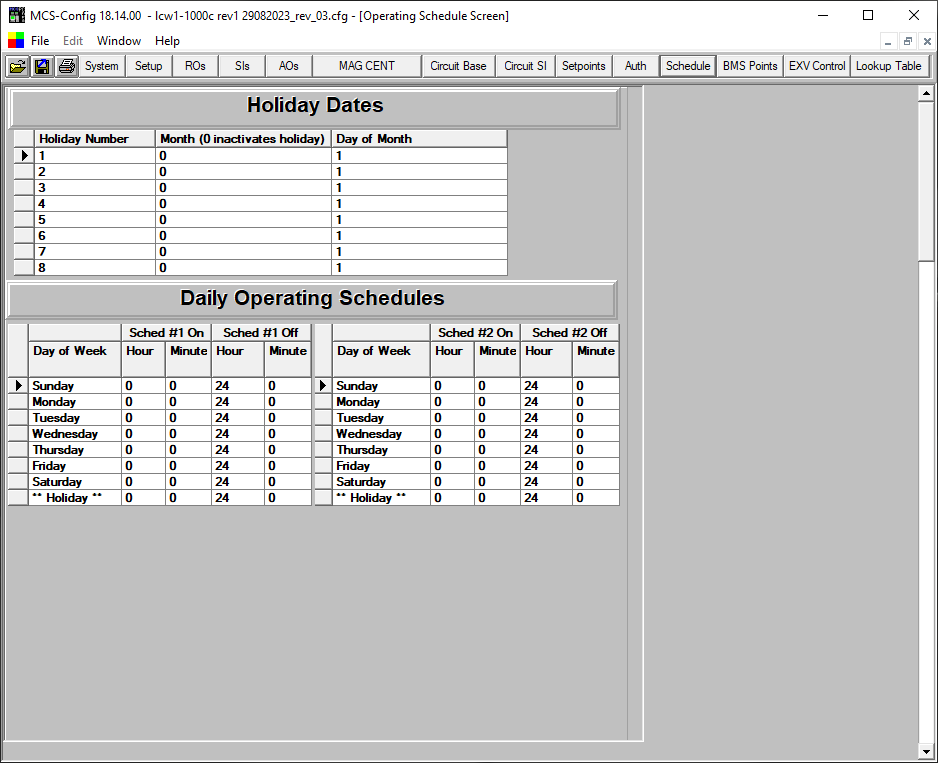

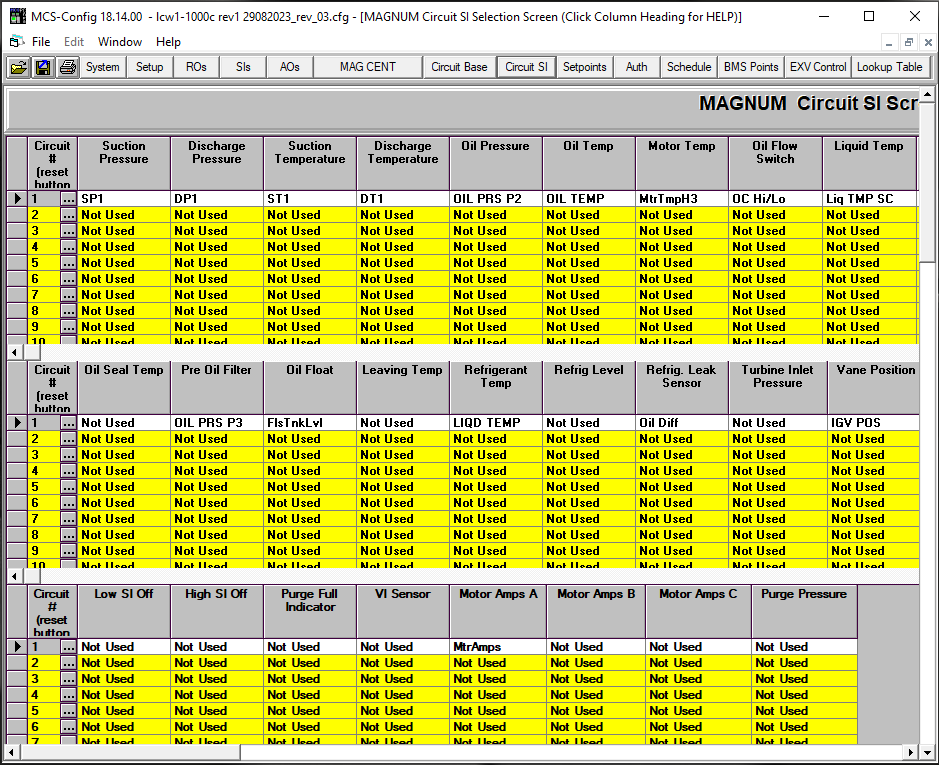

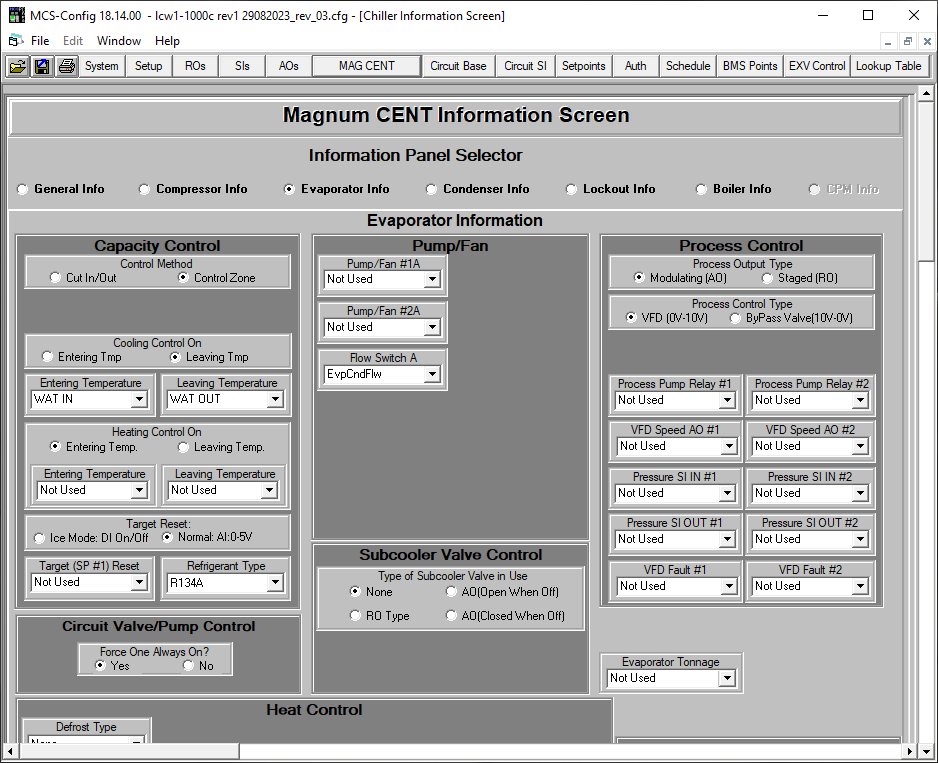

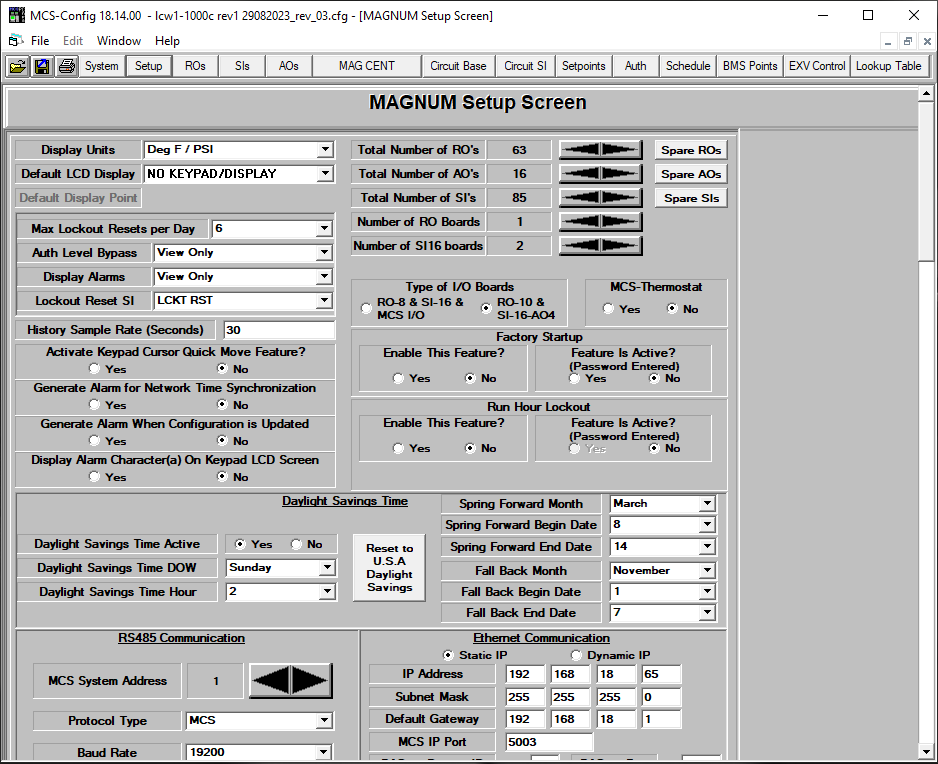

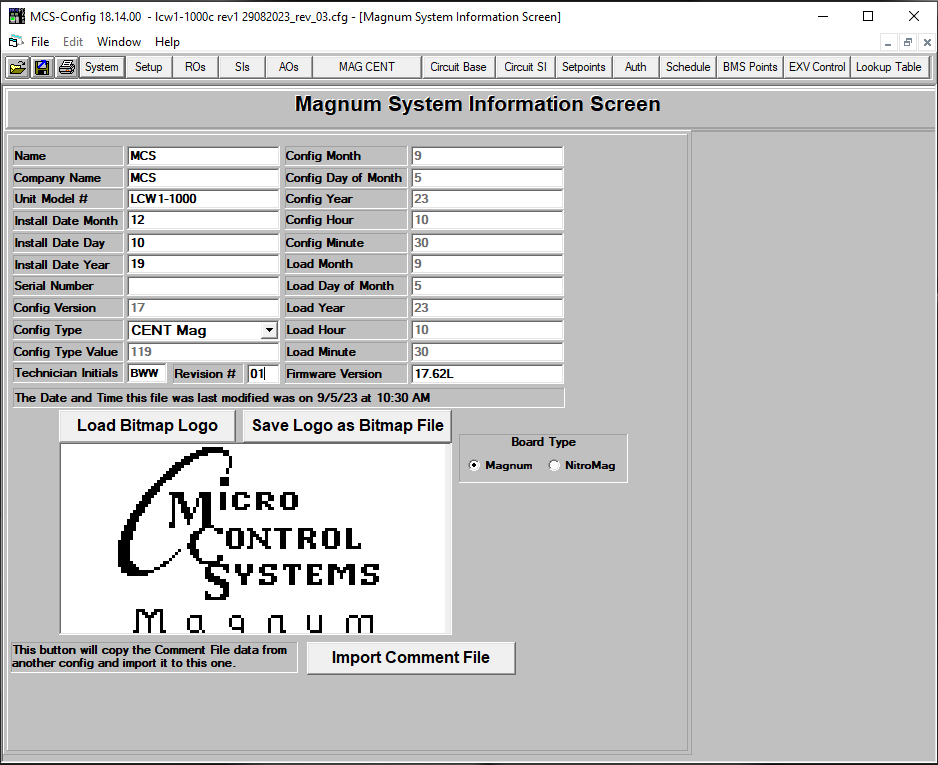

MCS-CONFIG

MCS-Config Spec Sheet A Microsoft Windows® program that communicates with MCS-8 and MCS-MAGNUM micro controllers. Communications can be either local or remote via a modem.
Please Note: This file contains the latest official release of MCS-Config. To install the software, first download (Save) the above file to your computer and then run it by clicking on the downloaded file and follow the instructions given.

Release Notes

MCS-Config Software download MCS-CONFIG 18.14.00 9,288 KB

MCS-Config Beta Software Download MCS-CONFIG BETA 18.14.05 9,294 KB

MCS-Example Config Files

MCS Configuration File Examples (Version 2.8.21) (17,601 KB)

To install the software, first download (Save) the above file to your computer and then run it by clicking on the downloaded file and following the instructions given.

MCS-BMS-GATEWAY TOOLS

Please Note: This zipped file contains the software and manuals needed to configure, analyze and monitor the MCS-BMS-GATEWAY. To install the software, first download (Save) the below file to your computer, then unzip it to extract the install.msi file, then run that file by clicking on it and following the instructions given.

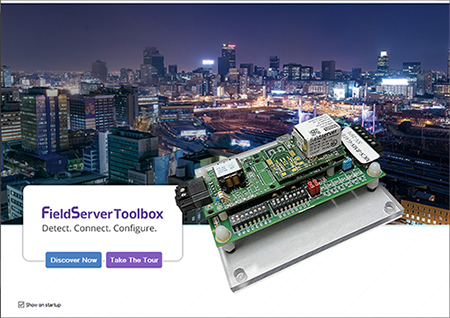

FieldServerToolbox

Download
