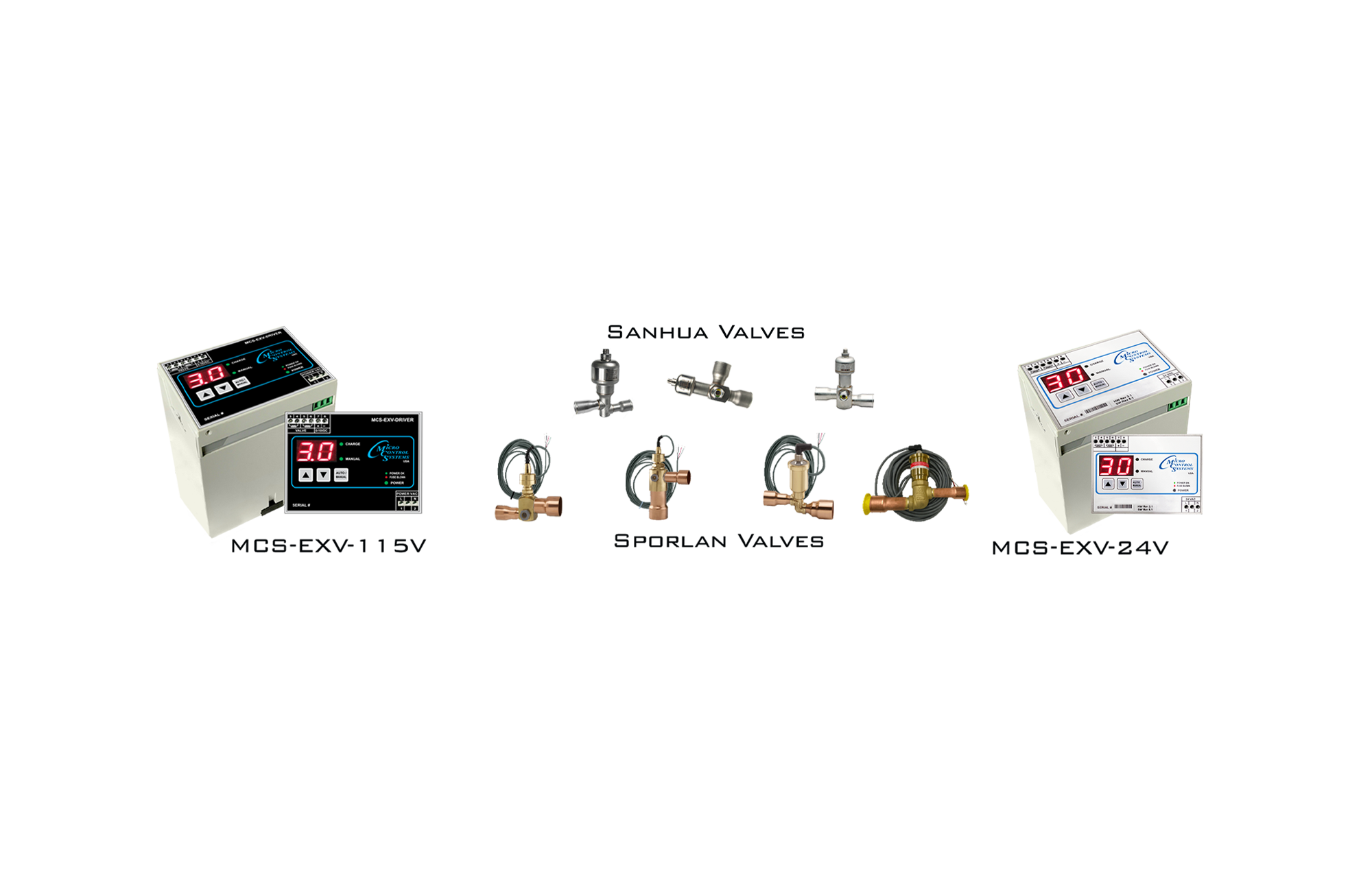

MCS-EXV-DRIVER

MCS-EXV-DRIVER Spec SheetPDF

MCS-EXV-DRIVER Installation Sheet

MCS-EXV-DRIVER-MANUAL

MCS-EXV-DRIVER 3D Drawing

Valve Code	# of steps	EXV Type
A1	750	Alco EX4-EX5-EX6
A2	1660	Alco EX7
A3	2600	Alco EX8
CL	500	CAREL E2V, E3V, E4V, E5V, E6V, E7V
D1	2625	Danfoss ETS-12B/24B/25B/50B, KVS-15
D2	3530	Danfoss ETS-100B
D3	3810	Danfoss ETS-250/400, KVS-42
D4	600	Danfoss ETS-12C/24C/25C/50C/100C
D5	1100	D5-Danfoss CCTM-2, CCMT-4, CCMT-8
D6	800	D6-Danfoss CCMT-16
D7	1400	D7-Danfoss CCMT-24
D8	2300	D8-Danfoss CCMT-30
D9	2200	D9-Danfoss CCMT-42
H3	2600	H3-Sanhua VPF-12.5, -25
H4	2600	H4-Sanhua VPF-50
H5	3500	H5-Sanhua VPF-100
H6	3800	H6-Sanhua VPF-150, -250, -400
P1	2500	P1-Sporlan GC-10, -20, -30, -40, -50; FGB-60, -70
S1	1596	Sporlan SEI 0.5 to 11
S2	1596	Sporlan SER 1.5-20
S3	3193	Sporlan SEI 30; SDR –3, SDR-3X
S4	2500	Sporlan SER -AA, -A, -B, -C, -D; Sporlan SERI -F, -G, -J, -K, -L; CDS -2, -4, -7
S5	6386	Sporlan SEI-50, SEH (I)-100, -175, -400, T; Y1218/ Y1231; SEH-P; CDS –9, -16, -17; SDR –4, -5
T1	1596	Sporlan SEI 0.5 to 11 two valves wired to one MCS-EXV-DRIVER
T2	1596	Sporlan SER 1.5-20 two valves wired to one MCS-EXV-DRIVER
T3	3193	Sporlan SEI 30; SDR –3; SDR-3x two valves wired to one MCS-EXV-DRIVER
T4	2500	Sporlan SER-AA, A, B, C, D Sporlan SER(I)-F, G, J, K, L, CDS; 2, 4, 7 two valves wired to one MCS-EXV-DRIVER
T5	6386	Sporlan SEI-50, SEH (I)-100, -175, -400, T; SEH-P; CDS –9, -16, -17; SDR –4, -5 two valves wired to one MCS-EXV-DRIVER

---

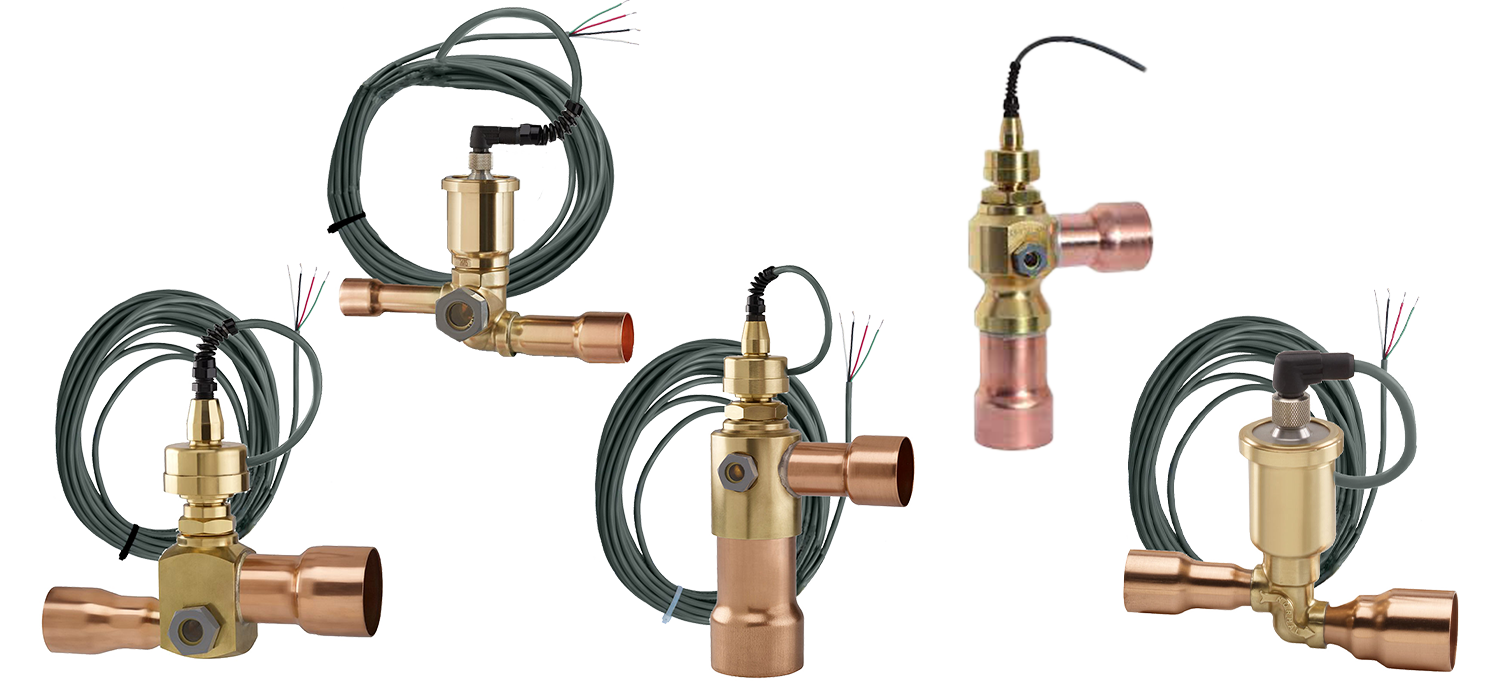

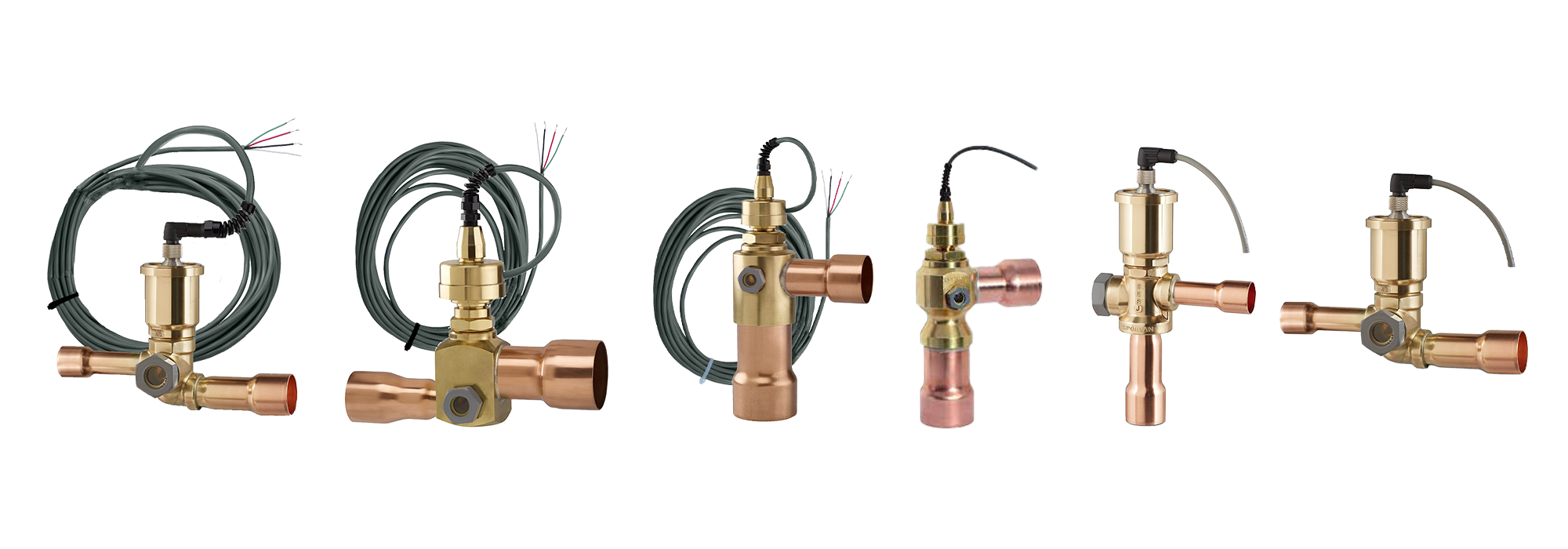

Sporlan Electronic Expansion Valves

PART #	Spec Sheet	Ton Nominal	Inlet Fitting	Outlet Fitting	Cable Length	EXV-Driver Setting
MCS-SER-D		13.8	5/8"	7/8"	30'	S1
MCS-SERI-G		26.7	7/8"	1 1/8"	30'	S2
MCS-SERI-J		47.8	1 1/8"	1 3/8"	30'	S4
MCS-SERI-K		86.7	1 1/8"	1 5/8"	30'	S4
MCS-SERI-L		118	1 3/8"	1 5/8"	30'	S4
MCS-SEHI-175		205	1 5/8"	2 1/8"	30'	S5
MCS-SEHI-400		424	2 5/8"	2 5/8"	20'	S5
MCS-SEH-P		333	1 5/8"	2 1/8"	20'	S5

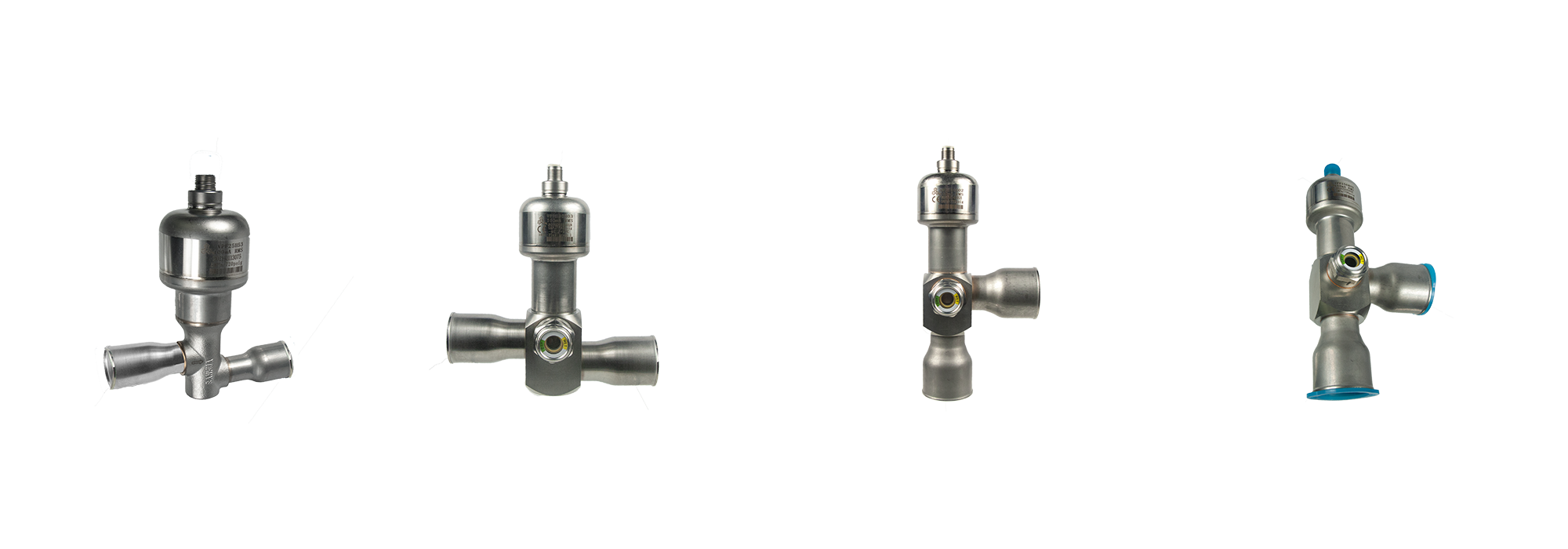

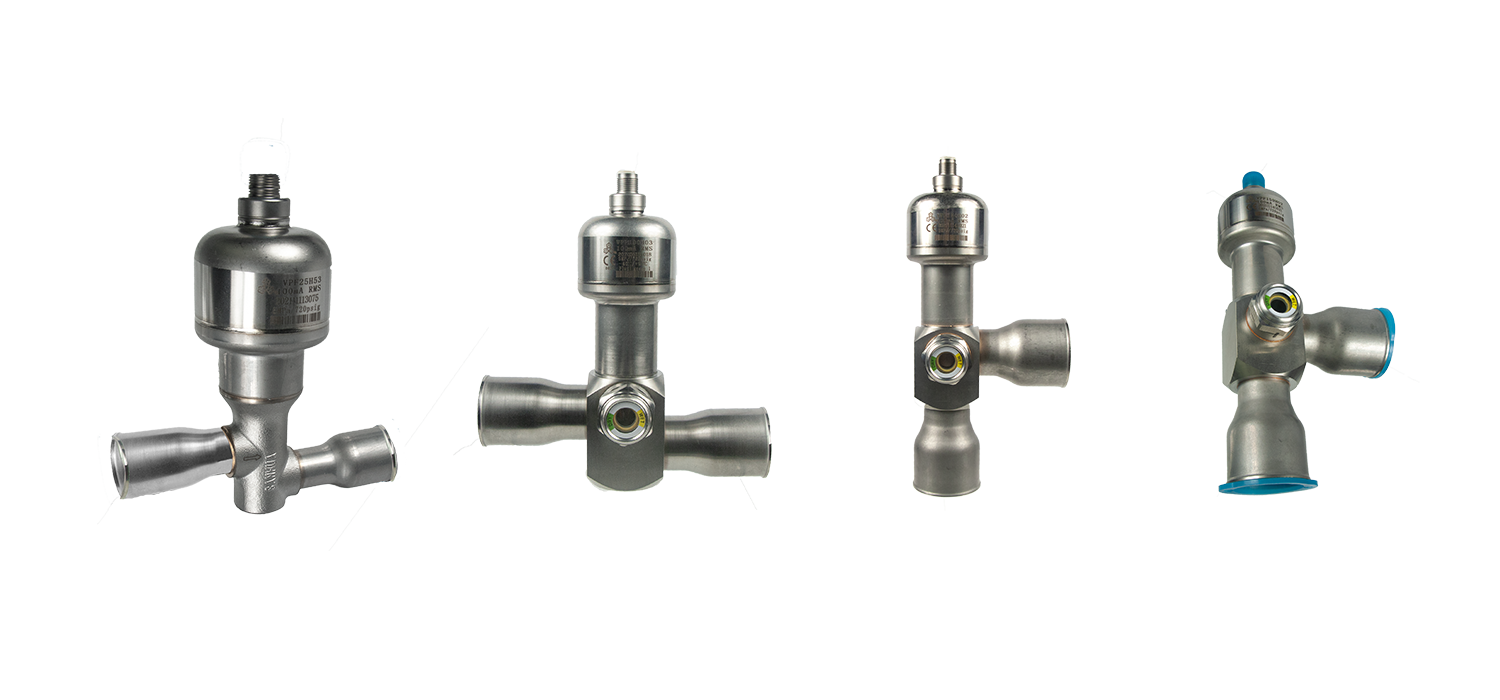

VPF Electronic Expansion Valves

PART #	Spec Sheet	Ton Nominal	Inlet Fitting	Outlet Fitting	Cable Length	EXV-Driver Setting
MCS-VPF12.5H53		20	7/8"	7/8"	32'(10M)	H3
MCS-VPF25H53		42	7/8"	7/8"	32'(10M)	H3
MCS-VPF50H03		80	1 1/8"	1 1/8"	32'(10M)	H4
MCS-VPF100H03		115	1 3/8"	1 3/8"	32'(10M)	H5
MCS-VPF150H02		207	1 5/8"	1 5/8"	32'(10M)	H6
MCS-VPF250H03t		322	1 5/8"	2 1/8"	32'(10M)	H6
MCS-VPF400H03		540	2 1/8"	2 1/8"	32'(10M)	H6
